Product Description

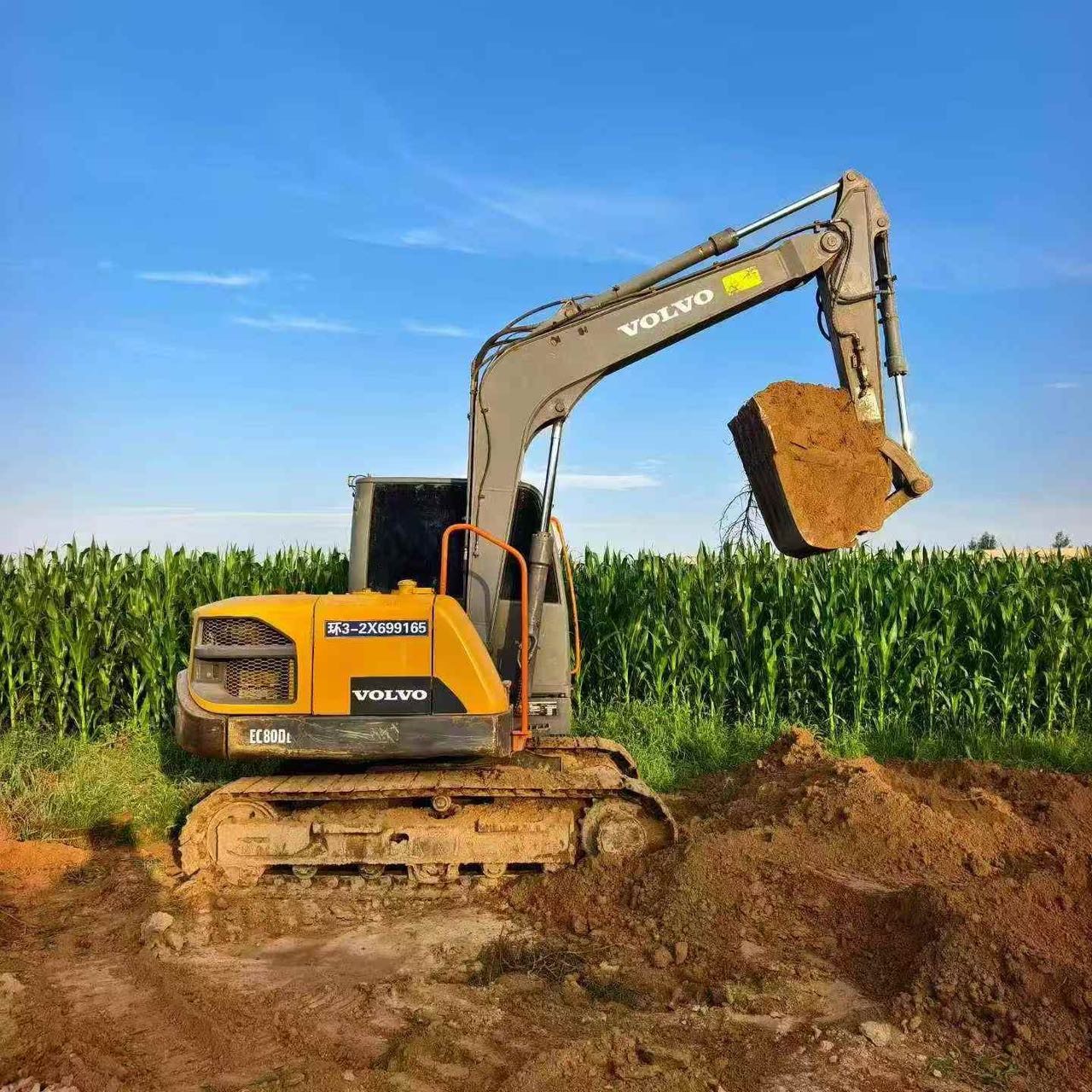

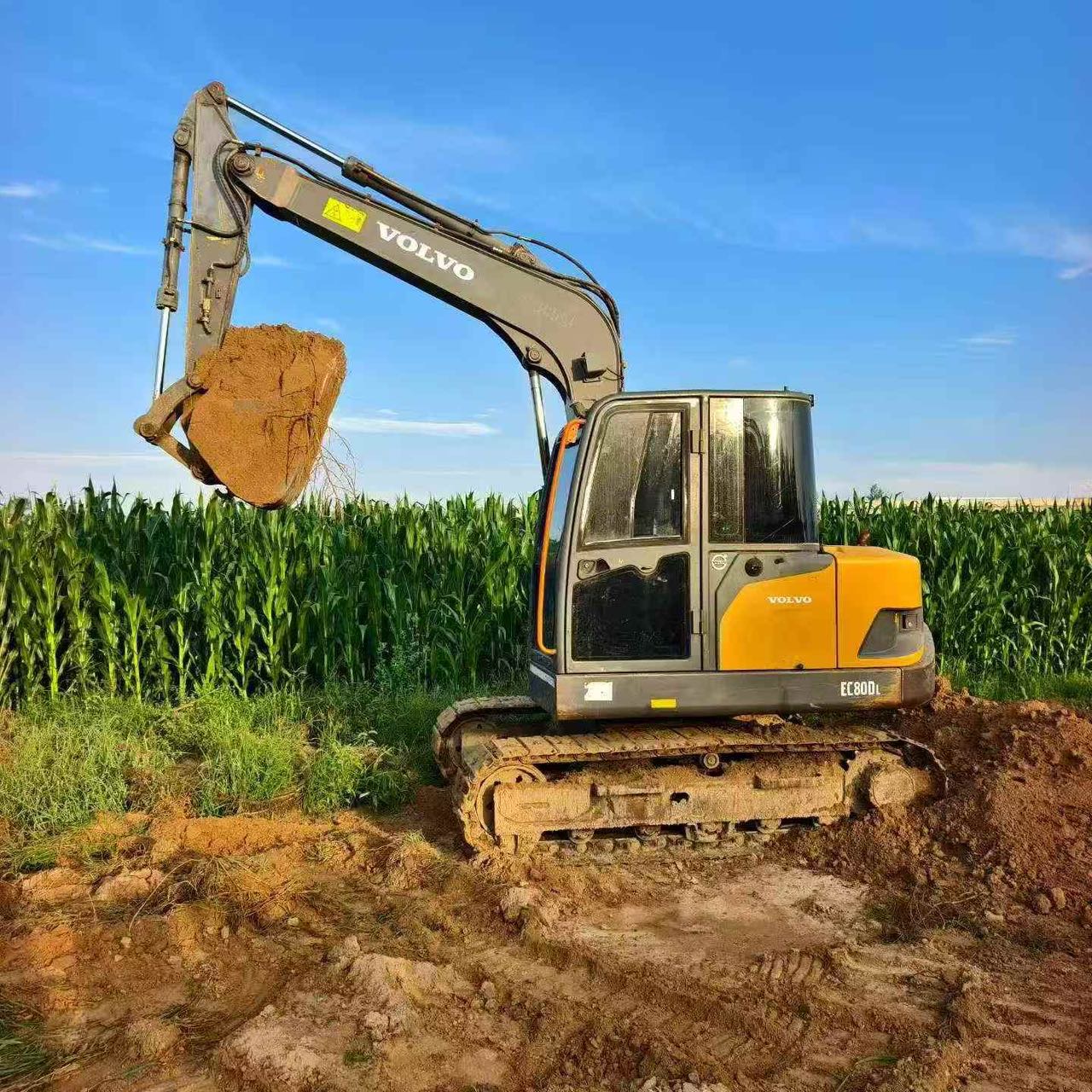

Discover the 2020 Volvo EC80D PRO, a premium compact excavator available in Peking, China. This used machine is in excellent condition, maintaining its original quality with no leaks and requiring no inspection, ensuring immediate operational readiness. Equipped with a highly effective air conditioning system, it provides a comfortable working environment. The EC80D PRO is renowned for its robust performance, making it an ideal choice for demanding construction projects. Acquire this nearly new excavator at a competitive price, ready to enhance your fleet's productivity and profitability.
- Year: 2020
- Brand: Volvo
- Model: EC80D PRO
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1121063 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7,400 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D2.6D |
| Rated power (kw/rpm) | 43 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Turning torque (Nm) | 21.5 |
| Main overflow set pressure (Mpa) | 29.4 |
| Maximum flow of main pump (l/min) | 1 x 176 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Pilot pump flow (L/min) | 16 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 11.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2200 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Dodging plate width × height (mm) | 2300*470 |
| Maximum excavation radius of stop surface (mm) | 6270 |
